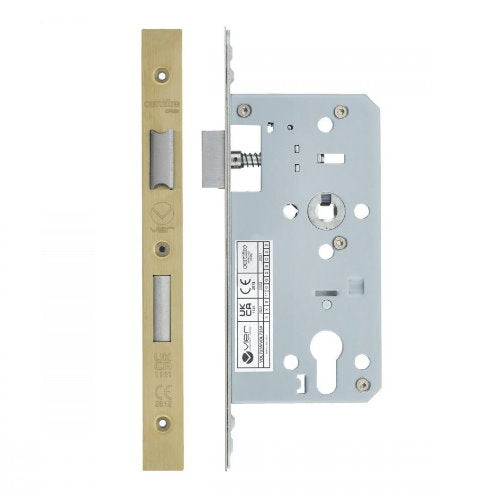

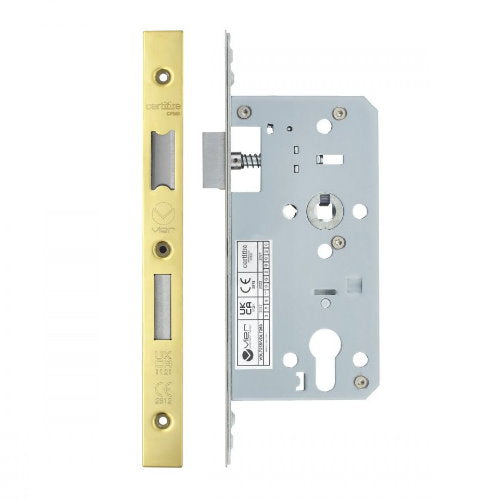

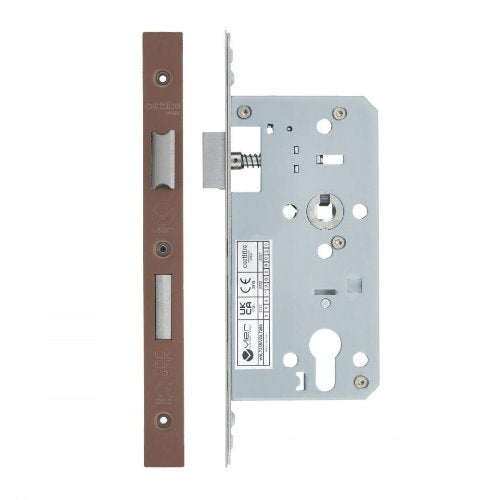

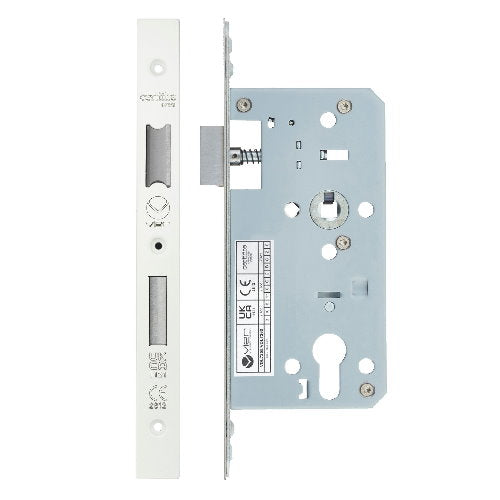

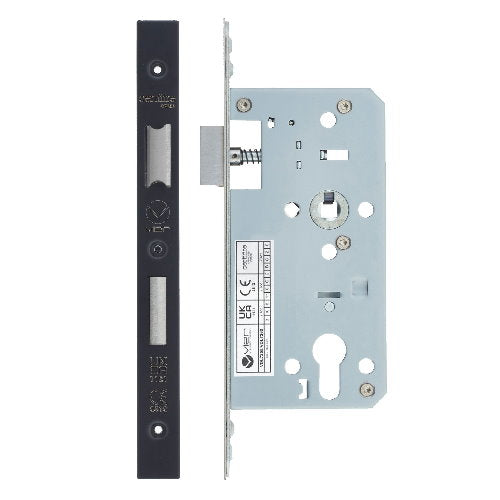

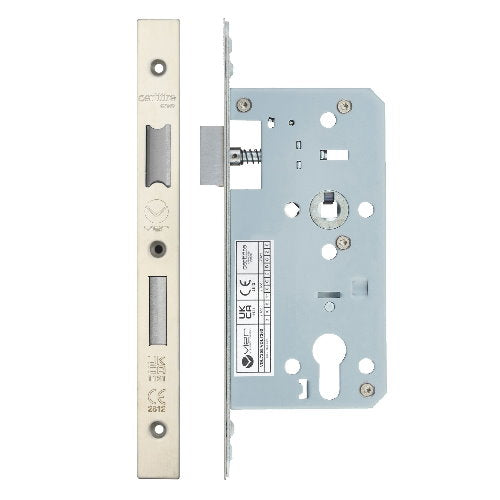

Zoo Hardware DIN European Cylinder Sashlock

Heavy duty DIN European mortice strongly sprung europrofile cylinder sash lock case with two-piece 22mm wide forend and anti-rattle striking plate (with black boxed keeps), and stainless steel latch and deadbolt; suitable for domestic and commercial projects.

The cylinder sashlock has a backset (distance from edge of door to handle/cylinder) of 60mm with 20mm double throw (two cylinder turns) and is suitable for un-sprung lever handles and euro-profile cylinders.

The distance between the centre of the lever handle and cylinder is 72mm which aesthetically when viewed on a door is less cramped than conventional UK locks. This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.

This sashlock is CE Marked and conforms to European standard EN12209:2003 Classification 3X810G2BC20 and conforms to the dimensional characteristics of DIN 18251and comes with a 5 year guarantee.

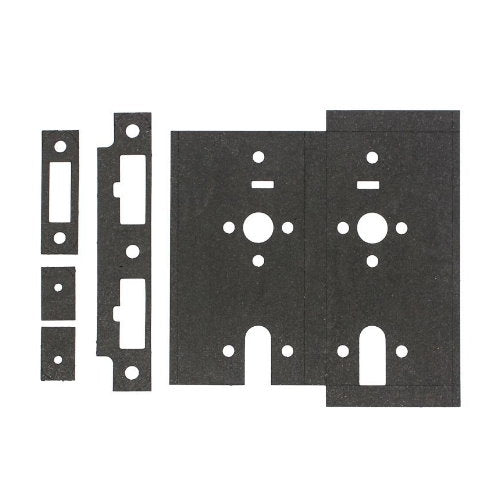

Certifire approved (CF850) for use on 30 and 60 minute fire rated doors when used in conjunction with correct intumescent pack; available via the drop-down on this page.

DIMENSIONS:
60mm Backset
90mm Case
72mm Centres

FINISHES:

Satin Stainless Steel
Polished Stainless Steel
Powder Coated Black
PVD Satin Black
PVD Satin Brass
PVD Satin Bronze
PVD Satin Gold
Powder Coated White
