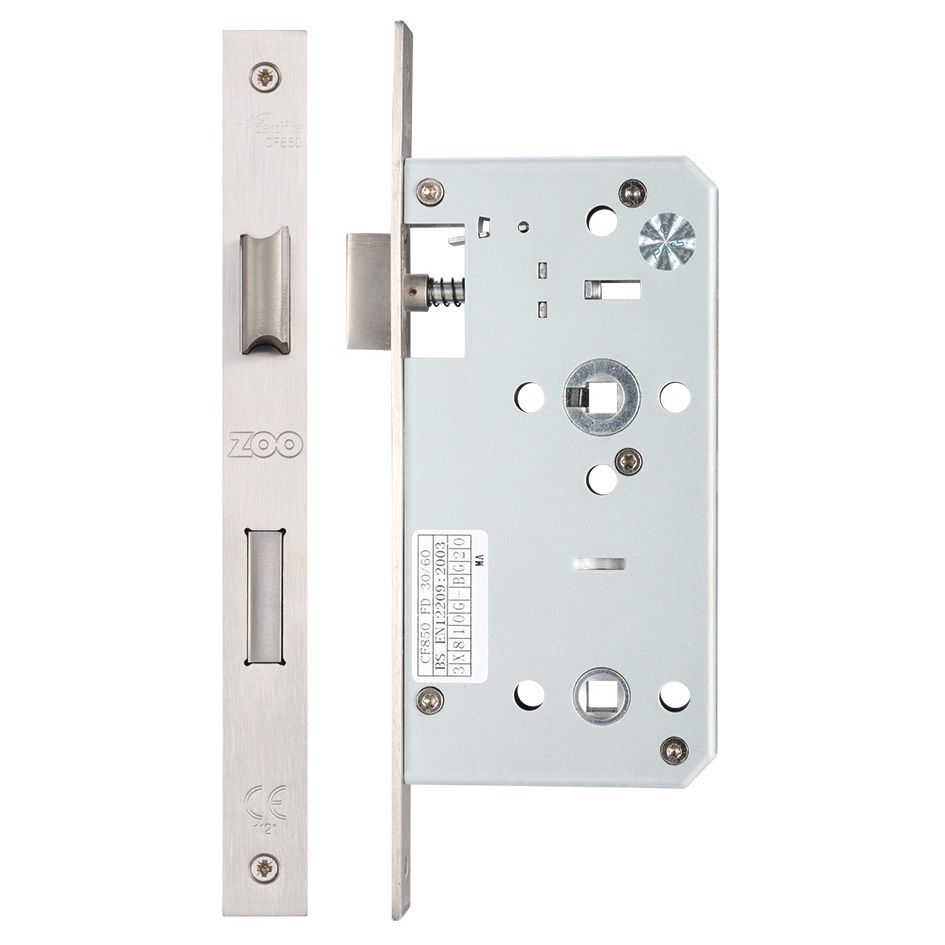

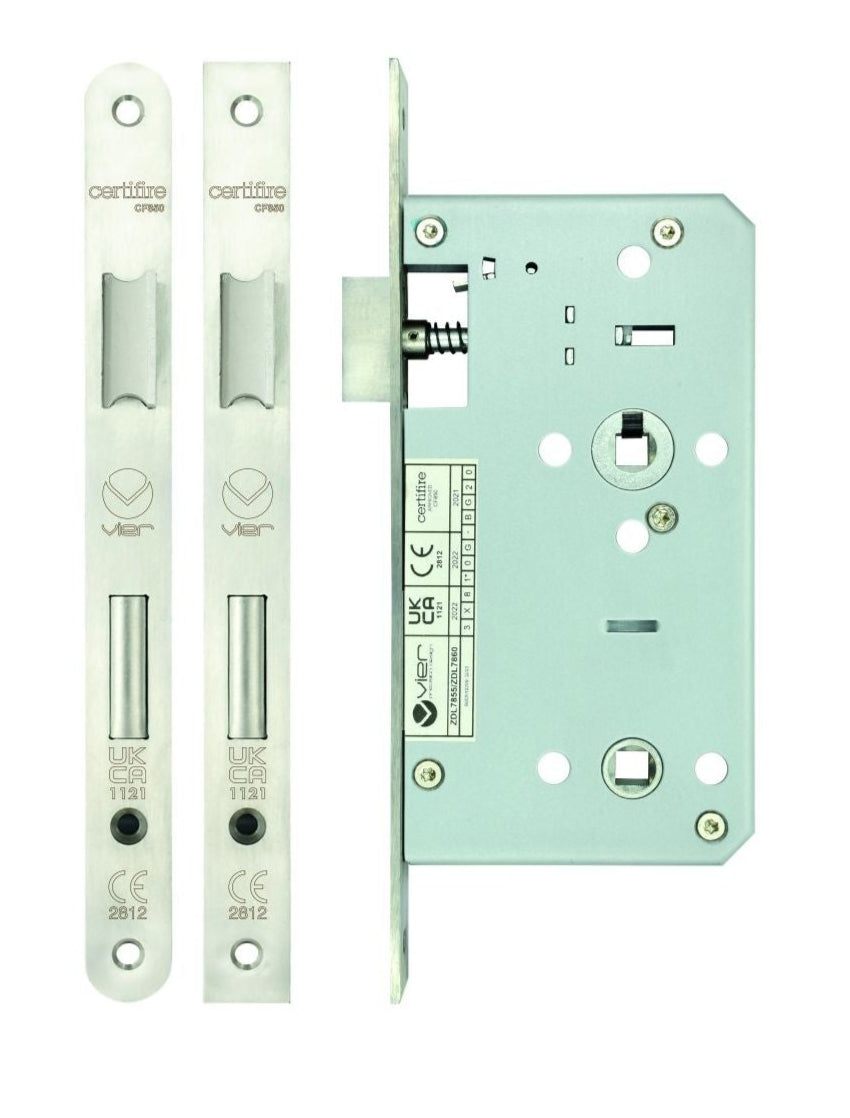

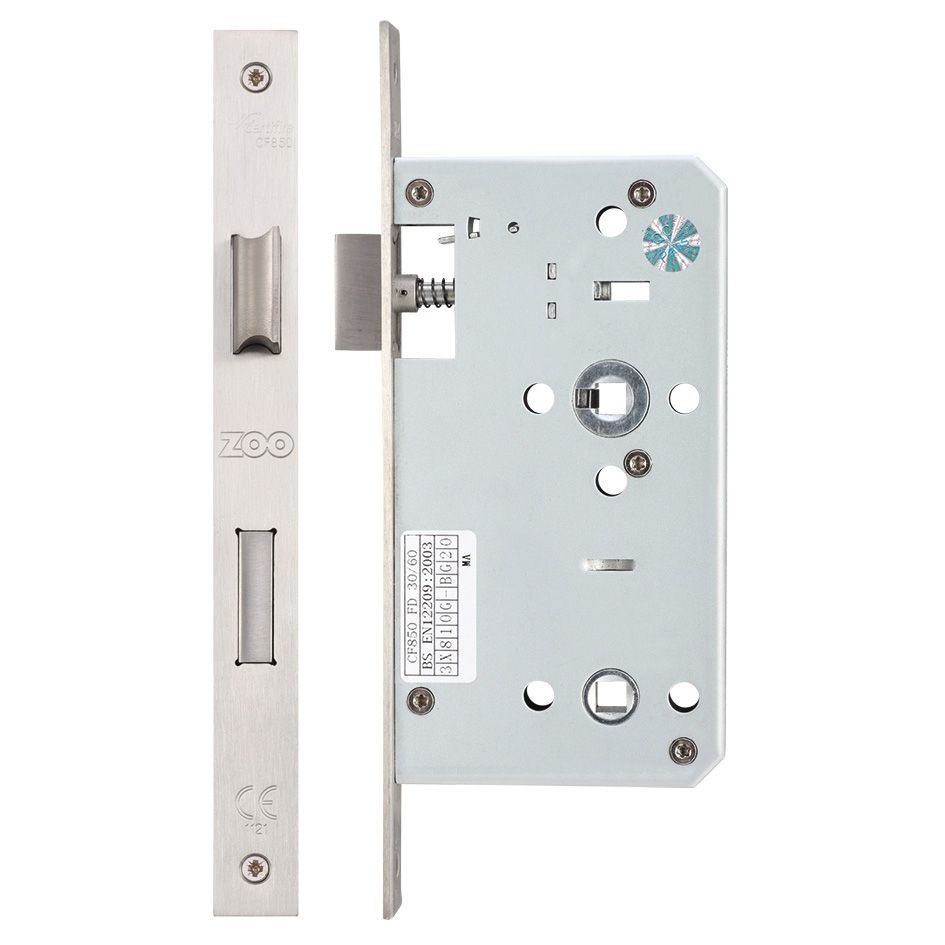

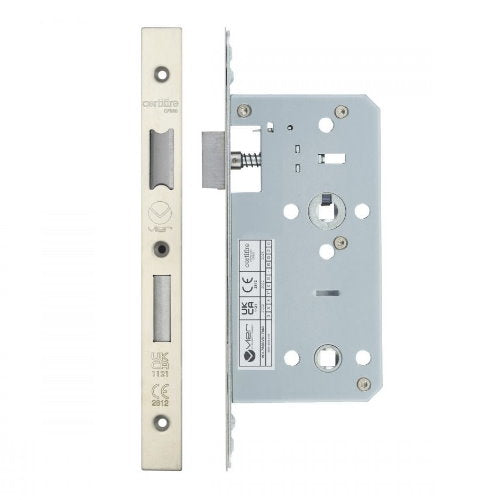

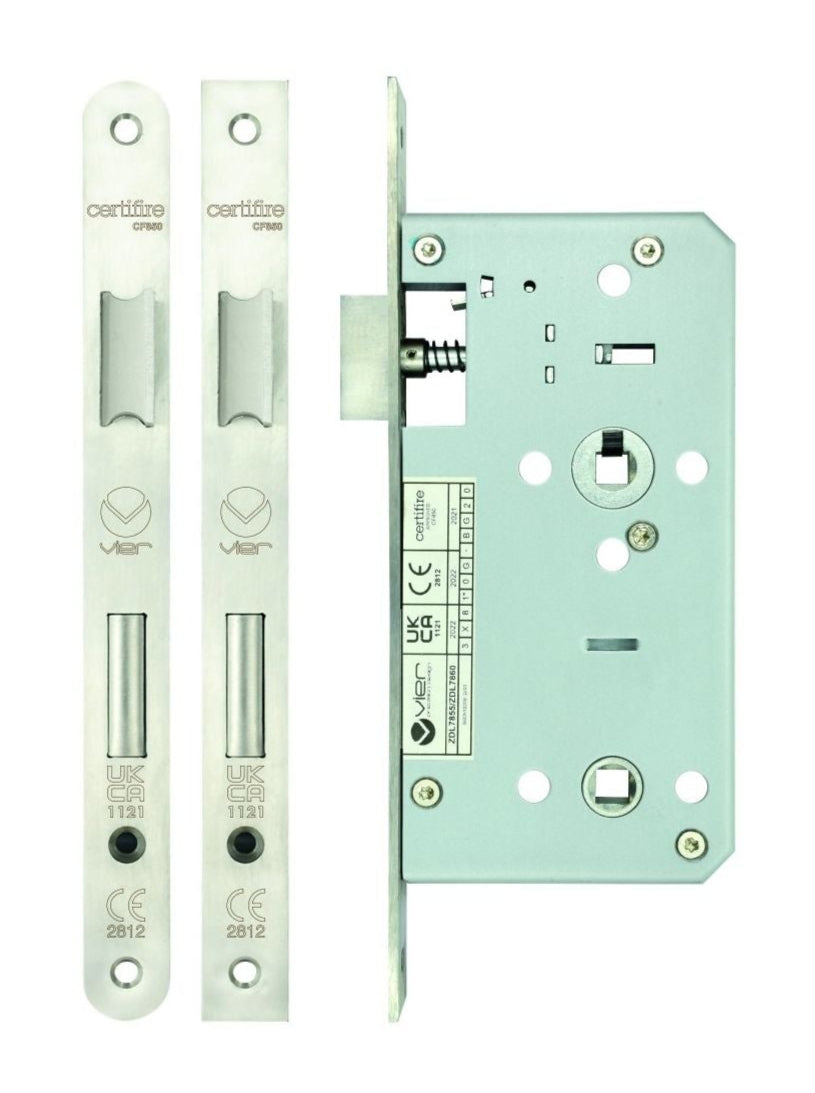

Zoo Hardware European Din Bathlock
Heavy duty European mortice strongly sprung bathlock with grade 304 satin stainless steel 22mm wide forend and anti-rattle striking plate (with black boxed keeps), with stainless steel latch and deadbolt; is suitable for domestic and commercial projects.
The bathlock has a backset (distance from edge of door to handle/cylinder) of either 55 or 60mm both with 20mm throw deadbolt and is suitable for un-sprung lever handles and with 8mm spindle bar follower.
The distance between the centre of the lever handle and WC set is 78mm which aesthetically when viewed on a door is less cramped than conventional UK locks. This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.
This bathlock is CE Marked and conforms to European standard EN12209:2003 Classification 3X810G2BC20 and conforms to the dimensional characteristics of DIN 18251and comes with a 5 year guarantee.

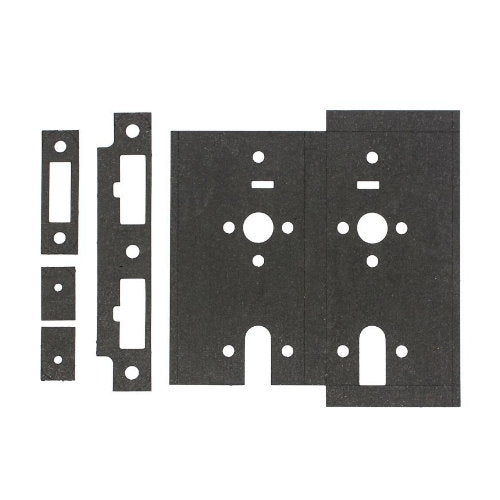

Certifire approved (CF850) for use on 30 and 60 minute fire rated doors, when used in conjunction with the correct intumescent pack available via the drop-down on this page.
DIMENSIONS:
55mm backset
85mm Case
60mm backset
90mm case
FINISH:
Satin Stainless Steel
