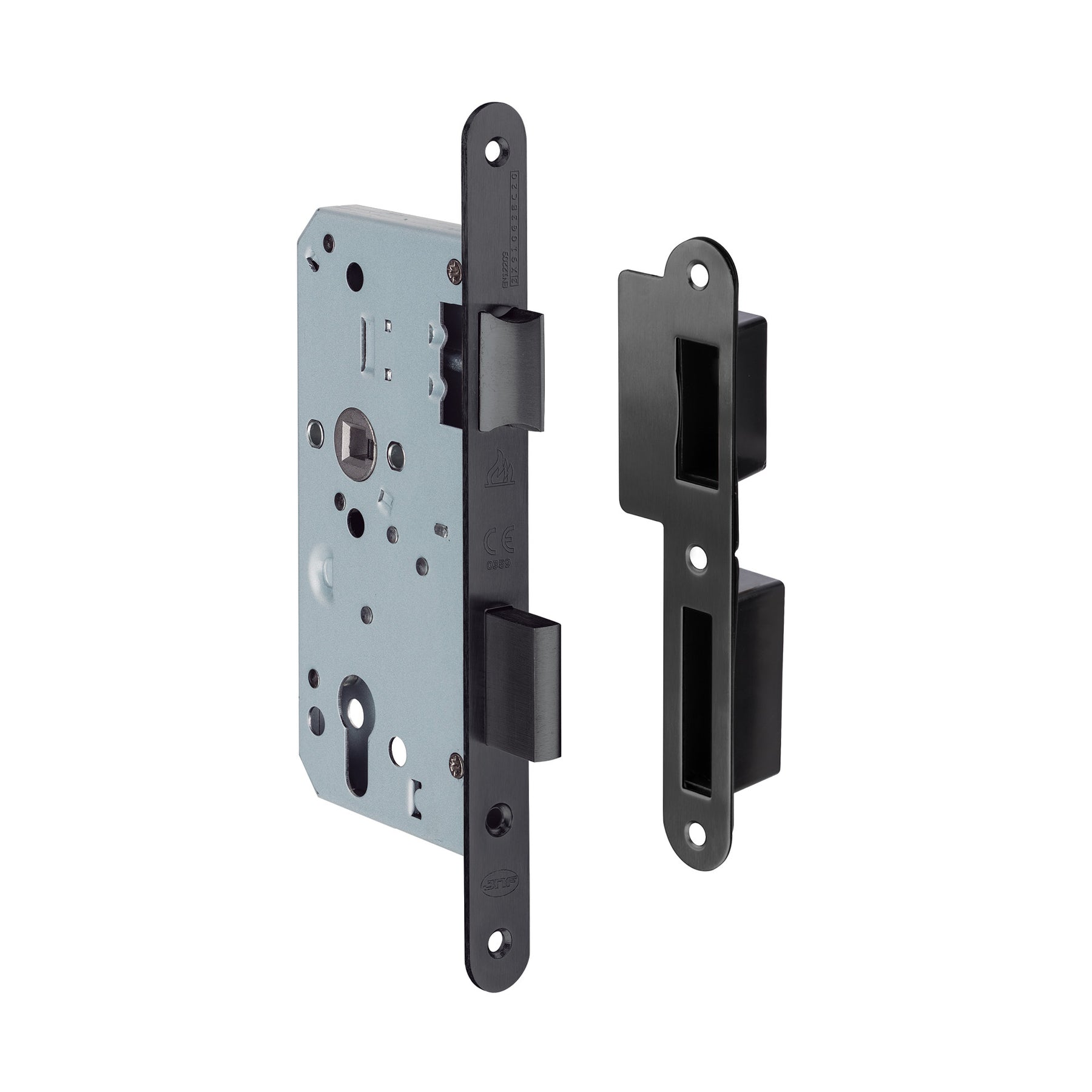

JNF Less is More DIN Radius Black Sashlock

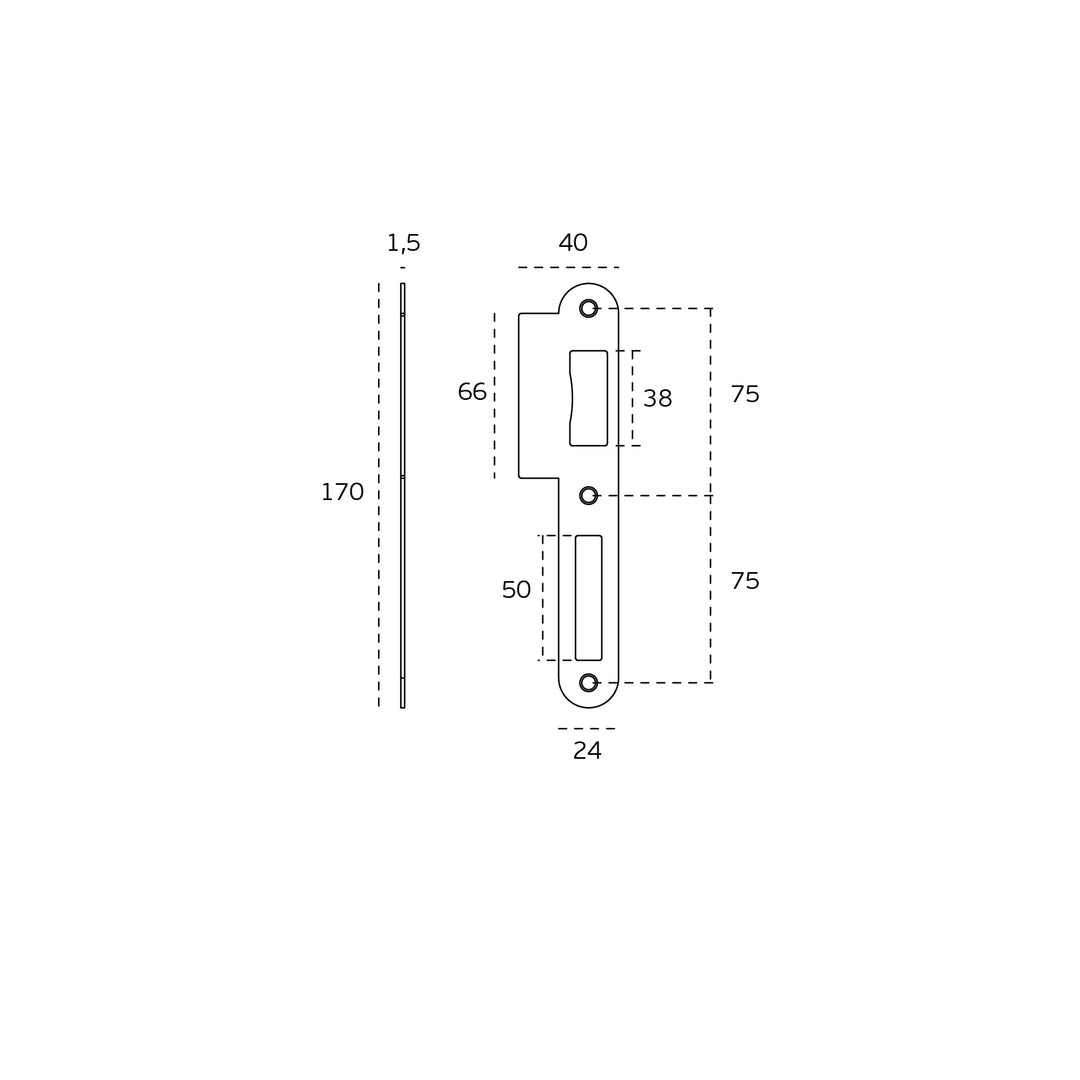

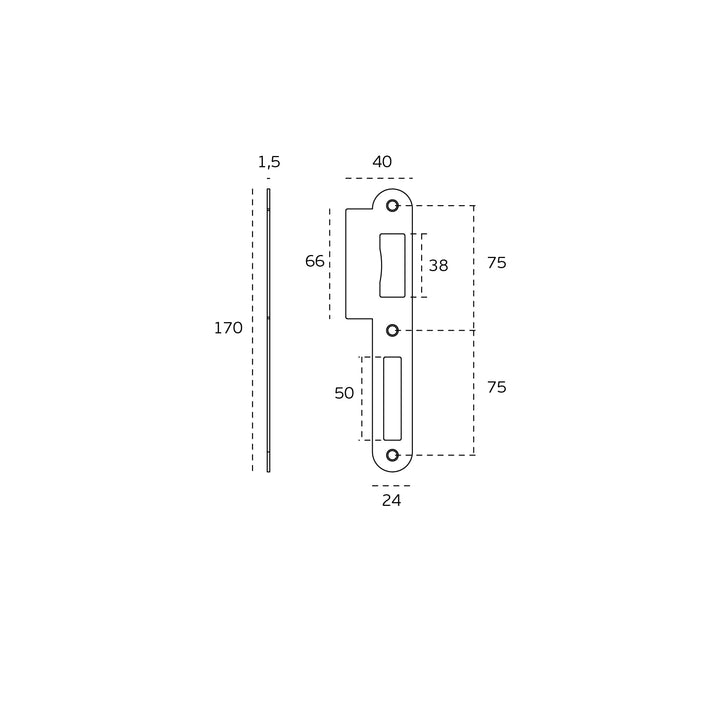

JNF mortice flush mounted grade 3 DIN black sashlock, supplied with matching radius forend and boxed keep strike plate.
The cylinder sashlock has a backset (distance from edge of door to handle/cylinder) of 60mm; suitable for un-sprung lever handles and euro-profile cylinders.
The distance between the centre of the lever handle and cylinder is 72mm which aesthetically when viewed on a door is less cramped than conventional UK locks.
This lock also has a "grip-tight" follower that eliminates the wobble that can be felt when operating the lever handles with other makers locks.

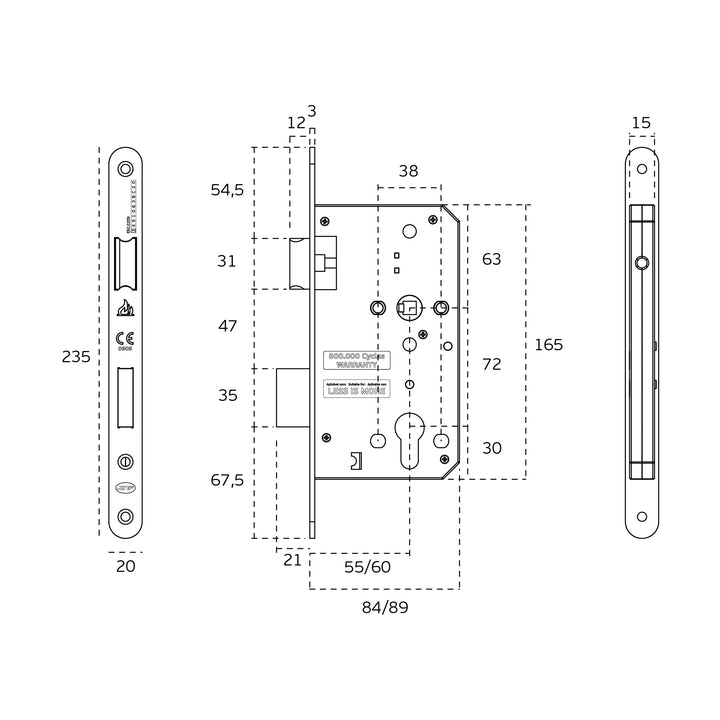

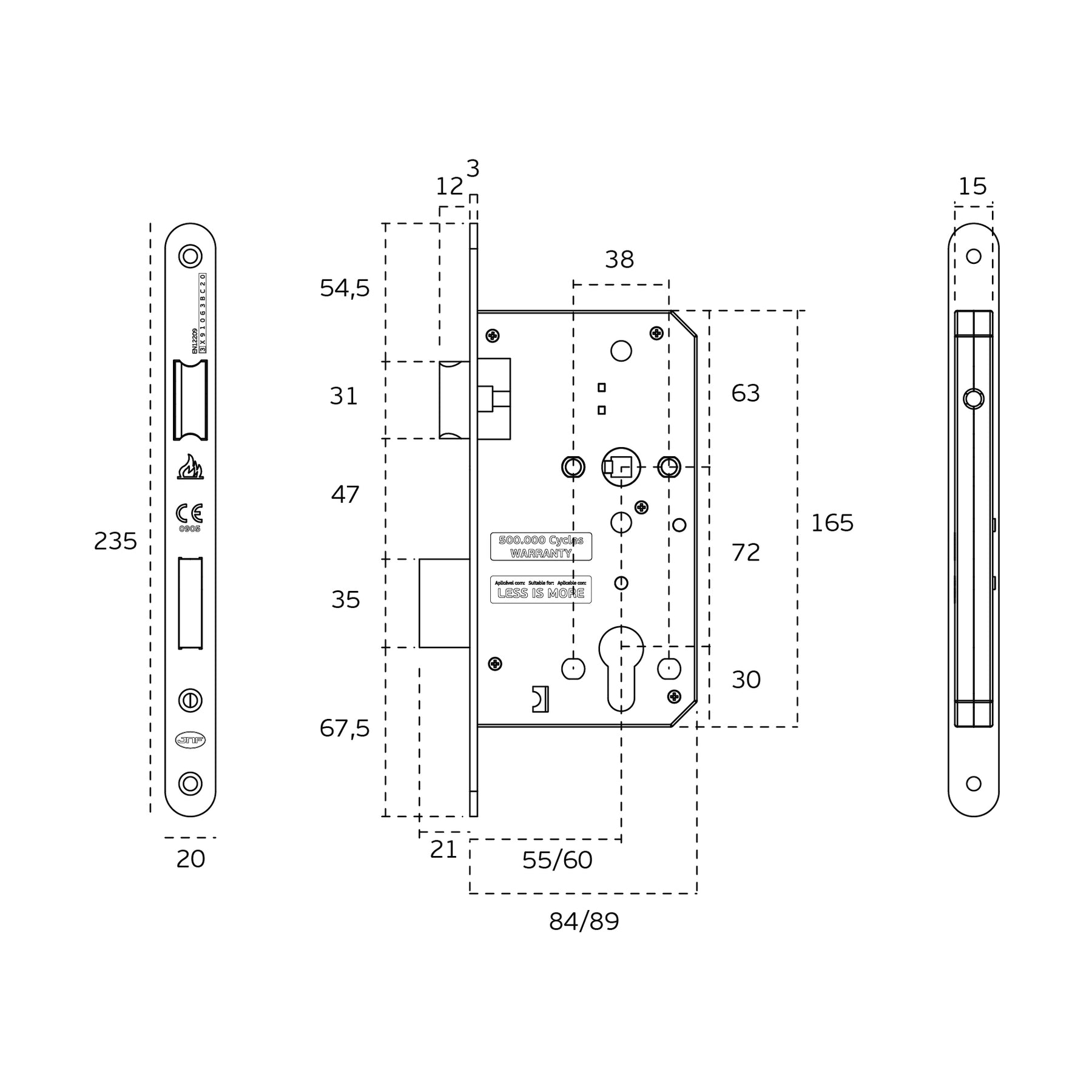

DIMENSIONS:
60mm Backset
72mm Centres
165mm High x 15mm Thick Case
88mm Case Depth
234mm x 20mm Lock Faceplate
