JNF double action 45kgs pivot set

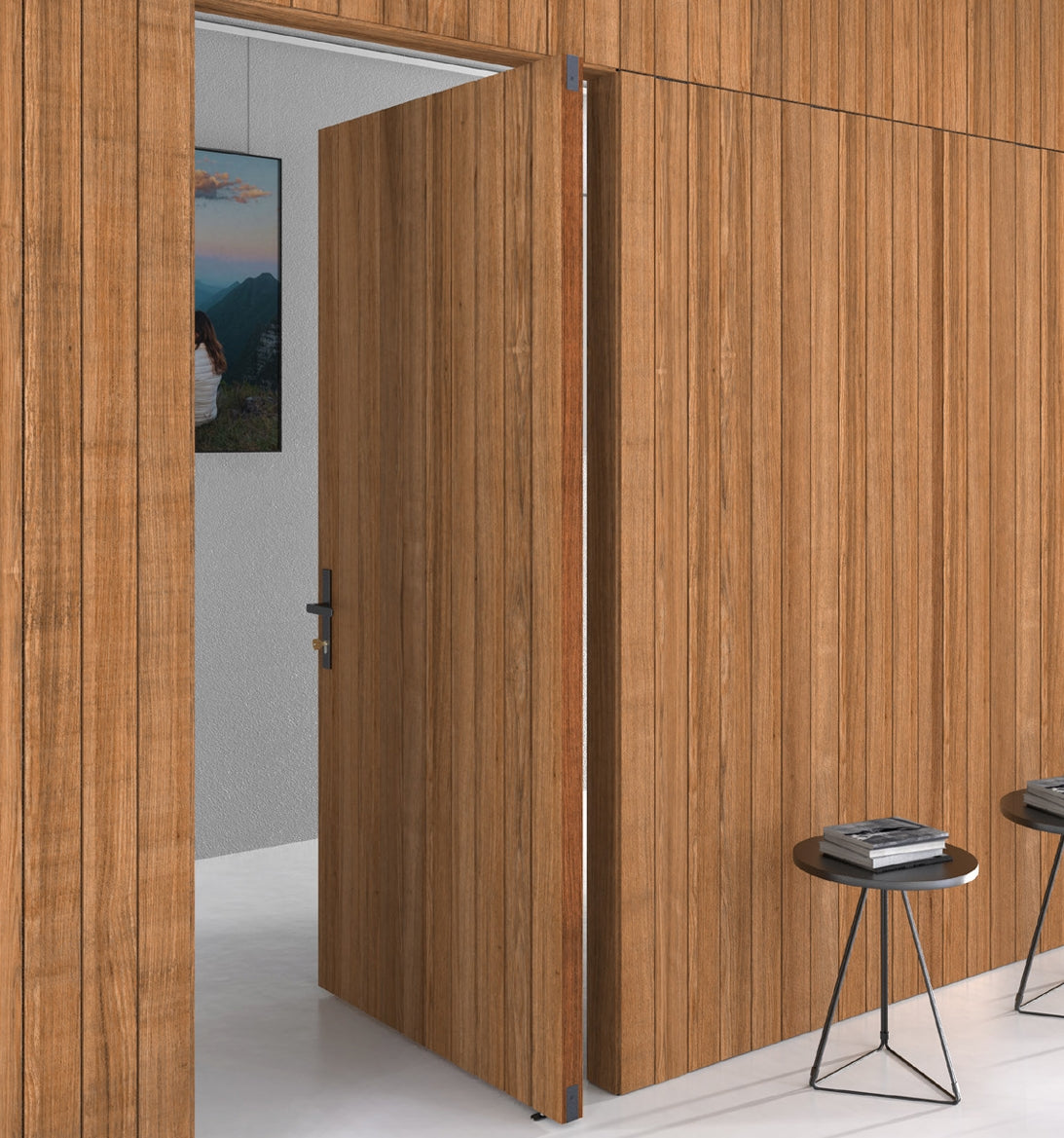

The JNF double action hydraulic heal pivot set is suitable for timber doors weighing upto 45kgs/900mm wide and with 35-45mm thickness. The pivot can be held open at 90 degrees and also rotate through 130 degrees with closing speed adjustment (at the edge of the door).
The heal spring sits on a bracket that is fixed to the floor with 4 x 30mm deep fixings and the top pivot depth into the frame is 23mm with the top plate being 80mm long x 25mm wide.
