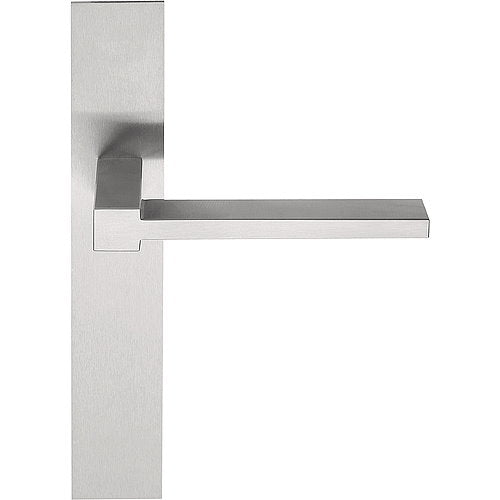

Formani Square LSQ5P236 Lever Handle on Plate
A set of two (pair) Square solid satin stainless steel unsprung lever handles attached to a back plate, one side with concealed fixings and the other side with visible fixings. Supplied complete with 8mm spindle bar, bolt through fixings and screws.
OPTIONS:
Lever on latch blank plate
Lever on lever key plate
Lever on europrofile cylinder plate
Lever on bathroom WC plate (wc set with 5/6/7/8mm spindle bar supplied)
CENTRES:
Lever key plate - 57mm
Europrofile cylinder Plate - 57mm & 72mm
WC Plate - 57mm & 78mm
Other centres available on request.
DIMENSIONS:
Lever
135mm Long
25mm Diameter
62mm Projection
Plate
235mm High
40mm Wide
3mm Thick
