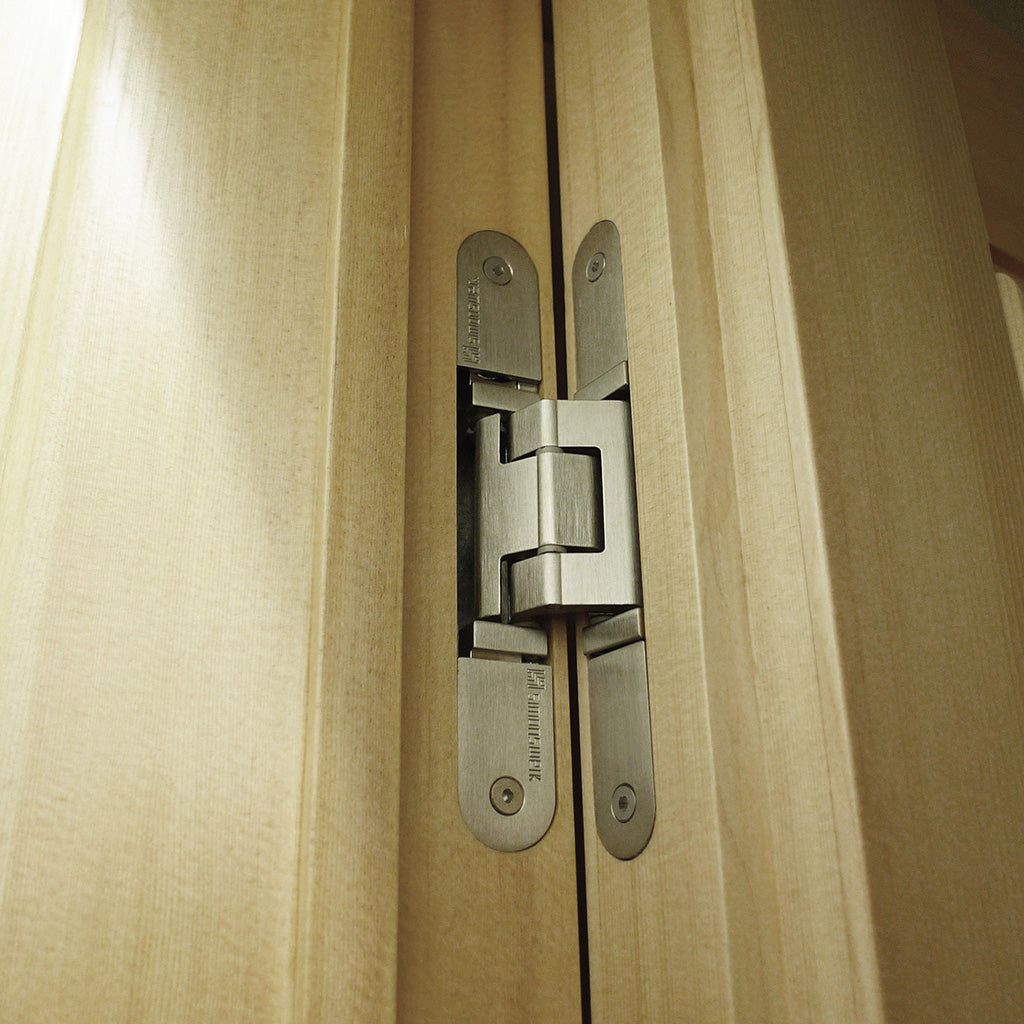

Tectus TE240 3D Concealed Hinge - 60kg
The Tectus TE240 3D hinge suits doors up to 60kgs based on two hinges per door leaf size 2000mm high x 1000mm wide with a minimum door thickness of 30mm. Suitable for timber, steel or aluminium frames with 3 dimensional adjustment (+/-3mm side and height and +/-1.5mm compression). 180 degree opening angle.
This is a non-fire rated hinge and therefore not suitable for fire doors.
Supplied with fixings.
Please note that these are sold singly
DIMENSIONS:
155mm High
21mm Frame Width
18mm Door Width
FINISH:
Satin Chrome Look (F1/SW 124)
Satin Nickel Look (F2/SW 125)
Stainless Steel Look (SW 126)
Bronze Metallic (SW 168)
Matt Black - RAL9005 (SW 107)
Traffic White - RAL9016 (SW 070)
Rustic Umber (SW 156)
Polished Nickel (SW 038)
Polished Brass (SW 030)
Satin Nickel (SW 144)
Satin Brass (SW 047)
Light Bronze Finish (SW 175)
Mid Bronze Finish (SW 174)
Dark Bronze Finish (SW 176)
