Boss Door Controls ITS6225 ADM/BS8300 Concealed Closer Size 2-4
Boss Door Controls ITS6225 ADM/BS8300 Concealed Closer Size 2-4

Boss Door Controls ITS6225 ADM/BS8300 Concealed Closer Size 2-4

BOSS DOOR CONTROLS SKU: IF923020BAB

Boss Door Controls ITS6225 ADM/BS8300 Concealed Closer Size 2-4

BOSS DOOR CONTROLS SKU: IF923020BAB
FINISH
Regular price £165.65
/
  • Express Delivery
  • Secure Payment
  • Guarantee on all products
  • 20+ Years Family run business

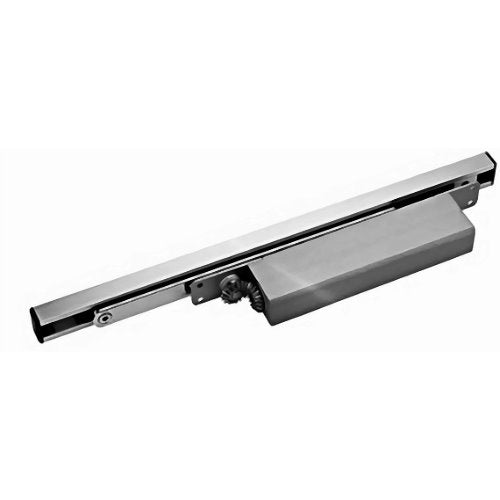

Boss Door Controls ITS6225 Concealed Overhead Door Closer - Power Size 2-5

An efficient, durable true CAM action slide door closer with high corrosion resistance. Suitable for most applications particularly public areas or those with constant use and is supplied with matching finished guide rail and slide arm.

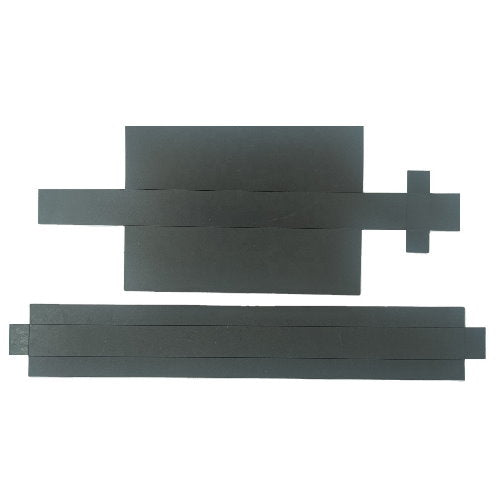

Supplied as standard without the intumescent fire pack, which is available via the drop down, and when used in conjunction with this offers FD60 fire resistance for 54mm thick timber doors.

This closer has adjustable power and adjustments for latching (0-15 degrees) and closing speed (110-15 degrees). Spring strength is adjustable on the door from size 2-5 for doors up to 1250mm wide/100kgs weight, where the minimum width of the door is 760mm.

This closer has been included in a successful fire test to EN1634-120min , CE Marked and Certifire Approved Certificate Number CF6141.

The closer meets BS8300/Equalities Act/Approved Document 'M' and has an opening force (0-30 degrees) less than 30N when fitted to a minimum door width of 803mm and has an opening force (30-60 degrees) less than 22.5N when fitted to a minimum width door of 595mm.

BS8300 requirements are for the whole door set and therefore the minimum suitable door width will increase when the door closer is fitted with other items of ironmongery and site condition may also affect performance

DIMENSIONS:
212mm Case Length
40mm Case Thickness
60mm Case Depth
1250mm Maximum Door Width
100kgs Maximum Door Weight
595mm Minimum Door Width
49mm Minimum Door Thickness

FINISHES:
Antique Brass
Polished Brass
Satin Brass
Matt Black
Dark Bronze
Light Bronze
Mid Bronze
Silver
Polished Stainless Steel
Satin Stainless Steel

+ PLEASE ALLOW 10 DAYS FOR PLATED FINISHES +
